DRIVE TRAIN
Catalog Home



Axles

Center Sections

Drive Shaft

Rear End

Transmission



AXLES

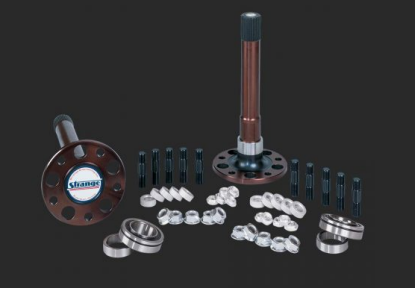

Strange Axles

Description

This Pro Race Axle Package Includes:

Hy-Tuf Ultra Strength Axles:  Forged from low carbon, high manganese, high nickel, and high molybdenum steel, majority of machining performed before heat treat to provide consistent hardness, .875″ ID hole bored entire length of axle, five 1″ ID lightening holes in axle flange, thru hardened to Rc 45-48 to maximize the material's torsional strength, finish machined, including entire shaft, after heat treat to ensure accuracy, 40 spline with 45º pressure angle, black oxide finish to resist corrosion, lengths up to 34 7/8″, choice of bolt circle, forged in the USA, designed and machined by Strange Engineering
Sealed Ball Bearings:
  Low friction bearings designed specifically for drag racing, OD grooved for o-ring to eliminate inner axle seal, includes o-rings and locking collars, choice of 5/8″-18 stud kit
Bolt Kit:
  5/8″-18 x 3″ Grade 8 fully threaded bolts, thin .200″ hex head provides additional clearance, width choice of anti-marring/spacer washers, includes threaded sleeves, installation tool & flanged lug nuts
Shank Style:
- 5/8″-18 chromoly stud available in six different shank lengths, width choice of anti-marring/spacer washers, includes thin head self locking inner nuts & flanged lug nuts

P1014 Pro Race axle pkg., 40 spline gun drilled axles, 3.150" axle bearings, 5/8" stud kit
Price:  $
735.00





CENTER SECTIONS

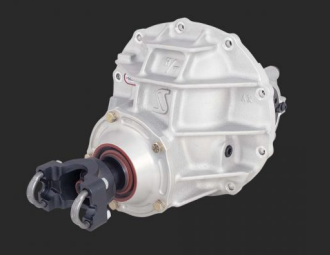

Strange Center Sections

Description

Complete Center Section Includes:


3.062″ Bore lightweight aluminum case for 31 or 33 spline or 3.250″ bore lightweight aluminum case for 35 or 40 spline, high tensile strength aluminum alloy case, forged aluminum main caps, solid steel adjuster nut, billet aluminum tapered bearing pinion support, oversized bearings and races, lightweight steel spool in 31, 33, or 35 spline, choice of 4.86-6.50 28 spline Pro Gear, chromoly 1350 Series yoke with u-bolts, professionally assembled Timken® bearings & races, grade 8 ring gear bolts

PRF165 Lightweight aluminum case assy., aluminum support with lightweight steel spool, 28 spline pro gear, chromoly yoke
Base Price:  $1,775.00
Upgrades available, call for pricing







DRIVE SHAFT



PST Drive Shafts

Description:  These 3″ chromoly shafts with 1350 Series “Gold” cryo-treated solid u-joints are built under the most stringent tolerances in the industry. Tubing is hydraulically straightened to .005″ total runout at the center of the tube.  Tube yokes are welded to within .006″ runout on each end.  The shafts are electronically computer balanced to less than 1/8 oz. per inch as an assembly, assuring smooth operation at the big end as well out of the hole. Critical speed is calculated on each shaft to insure your safety and ultimate shaft longevity.  The shafts are SFI certifiable, proven to withstand 2800ft/lbs. of torque by an independent testing facility. The shafts are recommended for drag race cars over 1200 HP - they are the strongest steel shaft available, with heavy duty chromoly tube yokes. Slip yokes sold separately.

DRCM3 4130 Chromoly 1350 series drive shaft, .095 wall, 3"
Price:  $629.00





Description:  These 3.5″ shaft with 1350 series “Gold” cryo treated solid u-joints are built under the most stringent tolerances in the industry. Tubing is factory straightened to .010″ total runout at the center of the tube.  Tube yokes are welded to within .006″ runout on each end.  The shafts are electronically computer balanced to less than 1/8 oz. per inch as an assembly, assuring smooth operation at the big end as well out of the hole. Critical speed is calculated on each shaft to insure your safety and ultimate shaft longevity.  We recommend the 3.5″ shaft in most cases to 1000 HP. Shafts are complete with the most common standard transmission slip yokes.

DRA3.5 6061-T6 DOM Aluminum drive shaft, .120 wall, 3.5"
Price:  $549.00





Description:  Over 15 years of experience with carbon fiber technology gives PST the experience necessary to produce these world class drive shafts.  Two different wind angles incorporated in the manufacture of the tubing to give extraordinary torsional strength.   That capability allows launches on Pro-Mod cars exceeding 3000 HP.  The shafts also lend themselves to high critical speed for long applications like trucks and early model OEM chassis cars.  The torsional spring rate designed into the tube gives a smoother 60 ft., creating less shock to all the driveline components resulting in longer part life. The strongest and lightest drive shafts available are bonded to 7075 forged aluminum tube yokes of our own design.  The assembly is tested under a 3000 ft/lb torque test in both directions to assure the quality of the bond and the integrity of the tube.  As with all of our shafts they are balanced as an assembly to less than 1/8 oz. per inch for smooth operation. Slip yokes sold separately.

DRCF3.75 Carbon fiber 1350 series drive shaft, 3 3/4"
Price:  $1,249.00





REAR END



RaceCraft Rear End

Description:

1/8" thick mild steel laser cut CNC formed wrapper, 3 1/4" DOM axle tubes, machined 3/8" grade 50 face plate, designed to accept 9 1/2" ring gear, 3-1/2 qt. lube capacity.
Housing includes ARP stud kit, filler cap, drain plug, axle vent, back brace, torque arm brackets, elite LCA brackets, custom LCA bracket width, wishbone mount, upper wheelie bar mound, Madman torque arm mount, and Strange housing ends.

210205 '93-'02 Camaro Pro Stock rear end, Madman TA mount, Strange housing ends
Base Price:  $2,060.00
Upgrades available, call for pricing

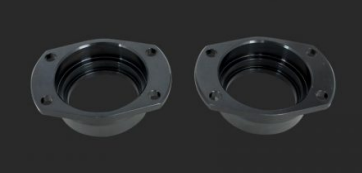

Strange Housing Ends

Description:  Housing ends, 8620 forged chrome moly steel, butt weld design, for 3″ or 3 1/4″ OD tubing, black oxide finish, designed & machined by Strange, material forged in the USA, sold as set of 2 for Late Big Ford

H1137 Housing ends, Late Big Ford
Price:  $140.00





TRANSMISSION

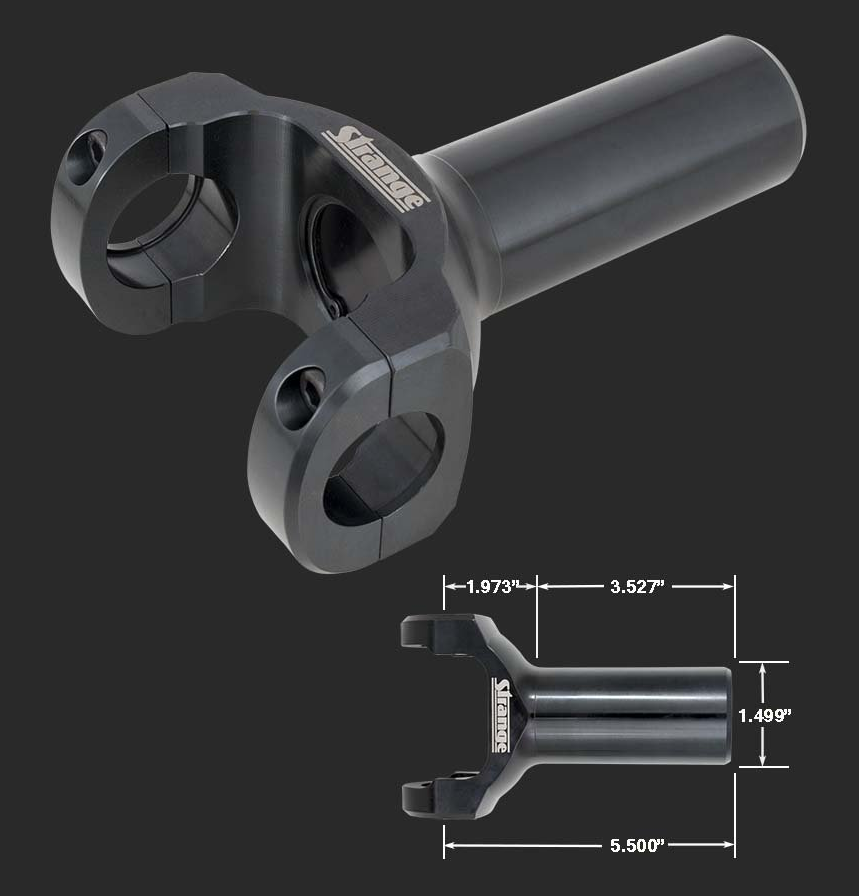

Strange Transmission Yoke



Description:  Forged 4340 chromoly fully machined steel, maximum strength for extreme applications, additional material in critical areas, removable caps allow transmission change within vehicle, induction hardened shaft for use with roller bearing, black oxide finish for corrosion resistance, designed & machined by Strange Engineering, forged in USA.

U1677N  Transmission yoke, 2 piece 1350 Series, GM 27 spline, severe duty
Price:  $250.00
